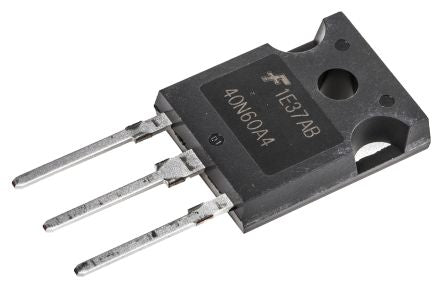

Fairchild HGTG40N60A4 IGBT, 75 A 600 V, 3-Pin TO-247 [HGTG40N60A4]; 124-1305
0₫
Mã kho: 1241305
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Continuous Collector Current | 75 A |
Maximum Collector Emitter Voltage | 600 V |
Maximum Gate Emitter Voltage | ±20V |
Package Type | TO-247 |
Mounting Type | Through Hole |
Channel Type | N |
Pin Count | 3 |
Transistor Configuration | Single |
Length | 15.87mm |
Width | 4.82mm |
Height | 20.82mm |
Dimensions | 15.87 x 4.82 x 20.82mm |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
