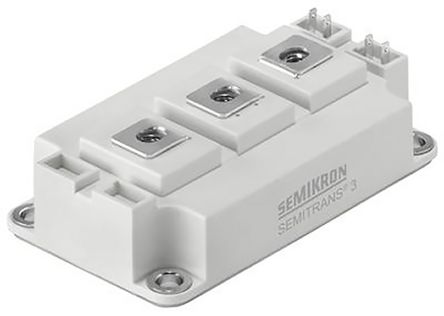

Semikron SKM300GB12E4, SEMITRANS3 Dual IGBT Transistor Module, 422 A max, 1200 V, Screw Mount [SKM300GB12E4]; 125-1113
by Semikron
0₫
Mã kho: 1251113
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Dual |
| Transistor Configuration | Half Bridge |
| Maximum Continuous Collector Current | 422 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Number of Transistors | 2 |
| Maximum Gate Emitter Voltage | 20V |
| Channel Type | N |
| Mounting Type | Screw Mount |
| Package Type | SEMITRANS3 |
| Pin Count | 7 |
| Switching Speed | 12kHz |
| Dimensions | 106.4 x 61.4 x 30.5mm |
| Height | 30.5mm |
| Length | 106.4mm |
| Maximum Operating Temperature | +175 °C |
| Width | 61.4mm |
| Minimum Operating Temperature | -40 °C |
