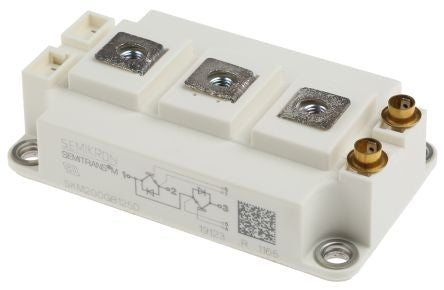

Semikron SKM200GB125D, SEMITRANS3 Dual Half Bridge IGBT Module, 200 A max, 1200 V, Panel Mount [SKM200GB125D]; 468-2454
by Semikron
0₫
Mã kho: 4682454
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Dual Half Bridge |
| Transistor Configuration | Series |
| Maximum Continuous Collector Current | 200 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | ±20V |
| Channel Type | N |
| Mounting Type | Panel Mount |
| Package Type | SEMITRANS3 |
| Pin Count | 3 |
| Dimensions | 106.4 x 61.4 x 30.5mm |
| Height | 30.5mm |
| Length | 106.4mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 61.4mm |
