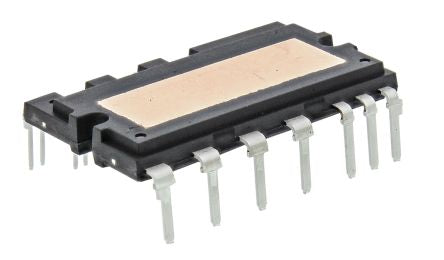

ON Semiconductor FSBB30CH60C, SPM27 EC IGBT Module, 30 A max, 600 V, Through Hole [FSBB30CH60C]; 124-1322
0₫
Mã kho: 1241322
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Continuous Collector Current | 30 A |
Maximum Collector Emitter Voltage | 600 V |
Channel Type | N |
Mounting Type | Through Hole |
Package Type | SPM27 EC |
Pin Count | 27 |
Switching Speed | 20kHz |
Maximum Power Dissipation | 106 W |
Dimensions | 44 x 26.8 x 5.5mm |
Height | 5.5mm |
Length | 44mm |
Maximum Operating Temperature | +150 °C |
Width | 26.8mm |
Minimum Operating Temperature | -40 °C |
