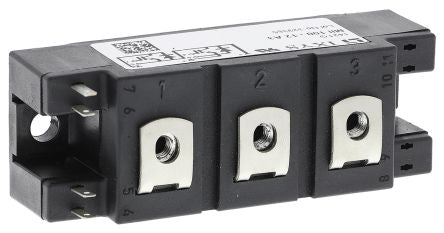

IXYS MII100-12A3, Y4 M5 Series IGBT Module, 135 A max, 1200 V, Panel Mount [MII100-12A3]; 193-874
by IXYS
0₫
Mã kho: 193874
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Series |
| Transistor Configuration | Series |
| Maximum Continuous Collector Current | 135 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | ±20V |
| Channel Type | N |
| Mounting Type | Panel Mount |
| Package Type | Y4 M5 |
| Pin Count | 7 |
| Dimensions | 94 x 34 x 30mm |
| Height | 30mm |
| Length | 94mm |
| Maximum Operating Temperature | +150 °C |
| Width | 34mm |
| Minimum Operating Temperature | -40 °C |
