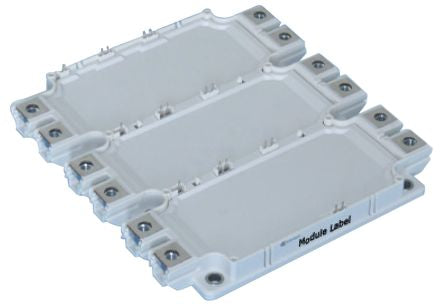

Infineon FS450R12OE4BOSA1, EconoPACK+ 3 Phase Bridge IGBT Module, 450 A max, 1200 V, PCB Mount [FS450R12OE4BOSA1]; 165-8094
by Infineon
0₫
Mã kho: 1658094
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Configuration | 3 Phase Bridge |
Transistor Configuration | 3 Phase |
Maximum Continuous Collector Current | 450 A |
Maximum Collector Emitter Voltage | 1200 V |
Maximum Gate Emitter Voltage | ±20V |
Channel Type | N |
Mounting Type | PCB Mount |
Package Type | EconoPACK+ |
Pin Count | 29 |
Maximum Power Dissipation | 2.25 kW |
Dimensions | 152 x 164.6 x 20.55mm |
Height | 20.55mm |
Length | 152mm |
Maximum Operating Temperature | +150 °C |
Width | 164.6mm |
Minimum Operating Temperature | -40 °C |
