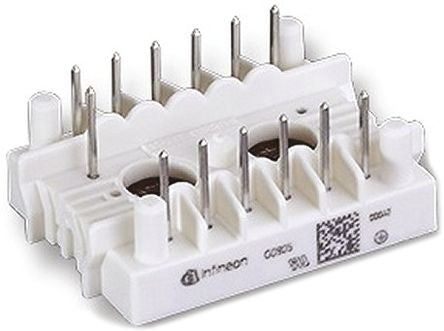

Infineon FS15R12VT3BOMA1, EASY750 3 Phase Bridge IGBT Module, 24 A max, 1200 V, PCB Mount [FS15R12VT3BOMA1]; 165-5845
by Infineon
0₫
Mã kho: 1655845
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | 3 Phase Bridge |
| Transistor Configuration | 3 Phase |
| Maximum Continuous Collector Current | 24 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | ±20V |
| Channel Type | N |
| Mounting Type | PCB Mount |
| Package Type | EASY750 |
| Pin Count | 11 |
| Switching Speed | 1MHz |
| Maximum Power Dissipation | 86 W |
| Dimensions | 32.4 x 25.4 x 12mm |
| Height | 12mm |
| Length | 32.4mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 25.4mm |
