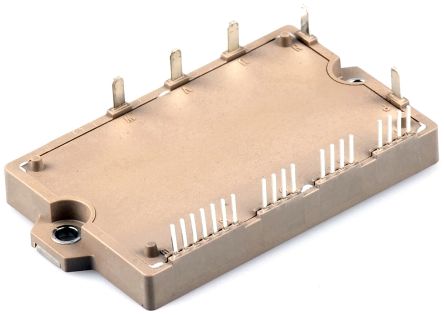

Fuji Electric 6MBP50VBA-060-50, P 626 3 Phase Smart Power Module, 50 A max, 600 V, PCB Mount [6MBP50VBA-060-50]; 877-7304
0₫
Mã kho: 8777304
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Transistor Configuration | 3 Phase |
Configuration | 3 Phase |
Maximum Continuous Collector Current | 50 A |
Maximum Collector Emitter Voltage | 600 V |
Channel Type | N |
Mounting Type | PCB Mount |
Package Type | P 626 |
Pin Count | 24 |
Switching Speed | 20kHz |
Maximum Power Dissipation | 169 W |
Dimensions | 87 x 50.2 x 12mm |
Height | 12mm |
Length | 87mm |
Maximum Operating Temperature | +110 °C |
Minimum Operating Temperature | -20 °C |
Width | 50.2mm |
