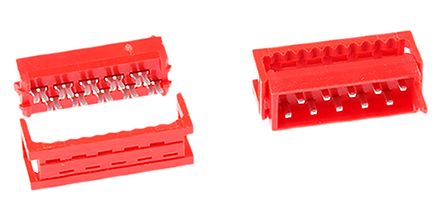

Wurth Elektronik 10-Way IDC Connector Plug for Cable Mount, 2-Row [690157001072]; 121-6767
0₫
Mã kho: 1216767
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 10 |
| Number of Rows | 2 |
| Gender | Male |
| Pitch | 1.27 mm, 2.54 mm |
| Mounting Type | Cable Mount |
| Body Orientation | Straight |
| Termination Method | IDC |
| Current Rating | 1A |
| Contact Plating | Tin over Nickel |
| Series | WR-MM |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Housing Material | PBT |
| Contact Material | Phosphor Bronze |
