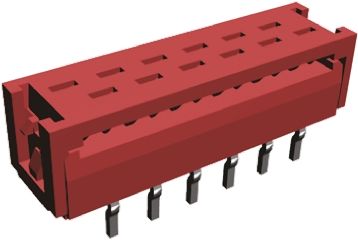

TE Connectivity 12-Way IDC Connector Plug Through Hole Mount, 2-Row [8-215570-2]; 161-4962
0₫
Mã kho: 1614962
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 12 |
| Number of Rows | 2 |
| Gender | Male |
| Pitch | 1.27 mm, 2.54 mm |
| Mounting Type | Through Hole |
| Body Orientation | Straight |
| Termination Method | IDC |
| Current Rating | 1.5A |
| Contact Plating | Tin over Nickel |
| Series | Micro-MaTch |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Voltage Rating | 230 V ac |
| Contact Material | Phosphor Bronze |
| Housing Material | Glass Fibre Reinforced Thermoplastic |
