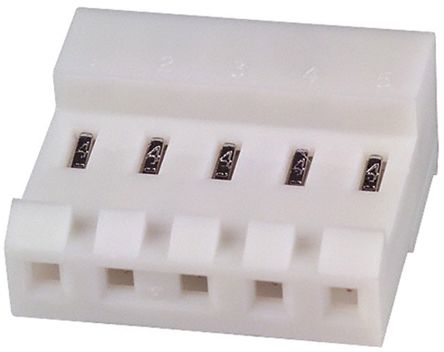

TE Connectivity 5-Way IDC Connector Socket for Cable Mount, 1-Row [3-640429-5]; 164-9398
0₫
Mã kho: 1649398
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 5 |
| Number of Rows | 1 |
| Gender | Female |
| Pitch | 3.96mm |
| Mounting Type | Cable Mount |
| Body Orientation | Right Angle |
| Termination Method | IDC |
| Current Rating | 7A |
| Contact Plating | Tin over Nickel |
| Series | MTA-156 |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +105°C |
| Voltage Rating | 600 V ac |
| Contact Material | Copper |
| Housing Material | Nylon |
