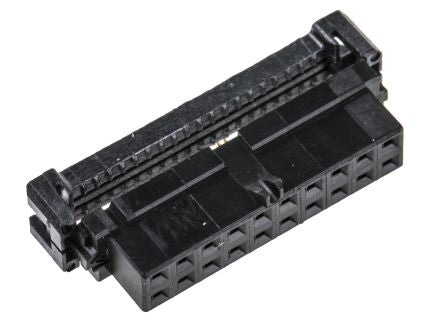

TE Connectivity 20-Way IDC Connector Socket for Cable Mount, 2-Row [2-111623-1]; 718-5029
0₫
Mã kho: 7185029
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 20 |
| Number of Rows | 2 |
| Gender | Female |
| Pitch | 2mm |
| Mounting Type | Cable Mount |
| Body Orientation | Right Angle |
| Termination Method | IDC |
| Current Rating | 5A |
| Contact Plating | Gold over Nickel |
| Series | AMP-LATCH |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +105°C |
| Voltage Rating | 125 V ac |
| Contact Material | Phosphor Bronze |
| Housing Material | PET |
