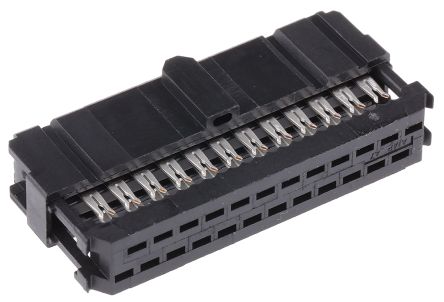

TE Connectivity 24-Way IDC Connector Socket for Cable Mount, 2-Row [1658621-5]; 719-8797
0₫
Mã kho: 7198797
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 24 |
| Number of Rows | 2 |
| Gender | Female |
| Pitch | 2.54mm |
| Mounting Type | Cable Mount |
| Body Orientation | Right Angle |
| Termination Method | IDC |
| Current Rating | 1A |
| Contact Plating | Gold over Nickel, Gold over Palladium Nickel |
| Series | AMP-LATCH Novo |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +105°C |
| Voltage Rating | 250 V ac |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
