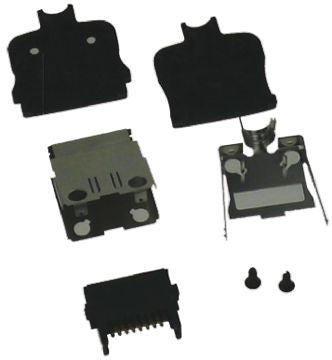

Hirose 10-Way IDC Connector Plug Through Hole Mount [3540-10P-CV(50)]; 729-3785
by Hirose
0₫
Mã kho: 7293785
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 10 |
| Gender | Male |
| Pitch | 1.6mm |
| Mounting Type | Through Hole |
| Body Orientation | Straight |
| Termination Method | Solder |
| Current Rating | 1A |
| Contact Plating | Gold |
| Series | 3500 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Voltage Rating | 125 V ac |
| Housing Material | Polymer |
| Contact Material | Copper |
