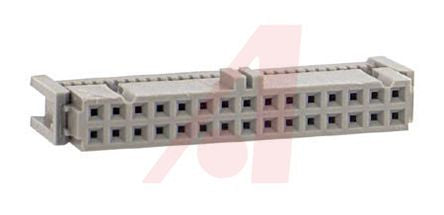

3M 30-Way IDC Connector Socket for Cable Mount, 2-Row [89130-0101]; 828-0434
by 3M
0₫
Mã kho: 8280434
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 30 |
| Number of Rows | 2 |
| Gender | Female |
| Pitch | 2.54mm |
| Mounting Type | Cable Mount |
| Body Orientation | Straight |
| Termination Method | IDC |
| Current Rating | 1.5A |
| Contact Plating | Gold, Nickel |
| Series | 891 |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +105°C |
| Voltage Rating | 1 kV ac |
| Housing Material | Glass-Filled PET |
| Contact Material | Copper |
