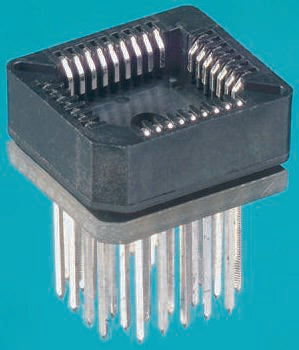

Winslow 2.54mm Pitch Female PLCC Socket, 32 Way, Through Hole, Tin over Copper Plated Contacts 1A [WPLCC032-T3RC]; 244-6802
by Winslow
0₫
Mã kho: 2446802
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| IC Socket Type | PLCC Socket |
| Gender | Female |
| Number of Contacts | 32 |
| Pitch | 2.54mm |
| Body Orientation | Straight |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin over Copper |
| Current Rating | 1.0A |
| Voltage Rating | 100 V ac, 150 V dc |
| Termination Method | Solder |
| Housing Material | Glass Fibre Reinforced PET |
