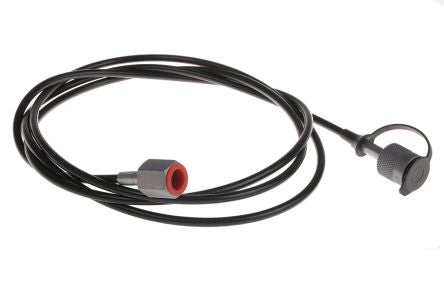

Hydrotechnik Hydraulic Test Point Hose S110-AC-FA-02.00, Connection A M16, Connection B G 1/4 [S110-AC-FA-02.00]; 257-8915
by Hydrotechnik
0₫
Mã kho: 2578915
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connection A Thread | M16 |
| Connection B Thread | G 1/4 |
| Length | 2m |
| Hose Outside Diameter | 5mm |
| Maximum Operating Pressure | 630 bar |
| Minimum Bend Radius | 20mm |
| Minimum Operating Temperature | -20°C |
| Connection B - Thread Standard | G |
| Connection B - Thread Size | 1/4 in |
| Maximum Operating Temperature | +100°C |
| Connection A - Thread Standard | Metric |
| Connection A - Thread Size | M16 |
