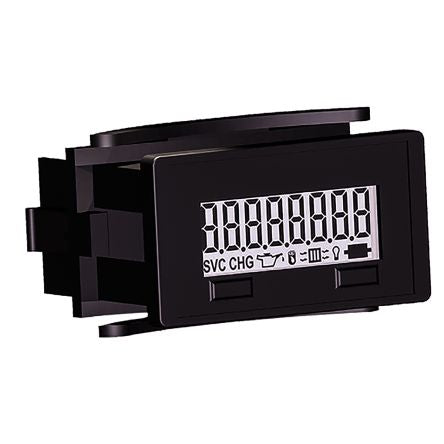

Trumeter Hour Counter, 8 digits, LCD, Terminal Connection, Voltage, 0.5 30 V dc, 300 V ac/dc [6320-0600-0000]; 882-6960
by Trumeter
0₫
Mã kho: 8826960
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connection Type | Terminal |
| Display Type | LCD |
| Backlighting | Yes |
| Input Type | Voltage |
| Maximum Count Frequency | 55Hz |
| Output / Interface | Voltage |
| Reset Method | Manual, No Reset, Remote |
| Supply Voltage | 0.5 → 30 V dc, 300 V ac/dc |
| Number of Digits | 8 |
| Digit Height | 8 mm |
| Meter Type | Electronic |
| Depth | 38mm |
| Cutout Width | 50.8mm |
| Series | 6320 |
| Cutout Height | 27.9mm |
| Meter Accuracy | 1 |
| Minimum Operating Temperature | -20°C |
| Maximum Measurement | 99999999 |
| Approvals | CE, CUL Recognized, EN 61326:1997 with A1:1998 & A2:2001, UL |
| Mounting Type | Panel Mount |
| Function | Timer |
| Cutout Size | 50.8 x 27.9 mm |
