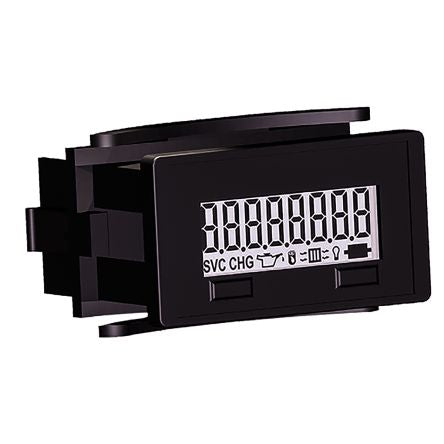

Trumeter Hour Counter, 7 (Annunciators Icon), 8 (Figure) digits, LCD, Terminal Block Connection, Voltage, -0.5 [6320-0500-0000]; 882-6967
by Trumeter
0₫
Mã kho: 8826967
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connection Type | Terminal Block |
| Display Type | LCD |
| Input Type | Voltage |
| Output / Interface | Voltage |
| Reset Method | Manual, No Reset, Remote |
| Supply Voltage | -0.5 → 30 V dc, 300 V ac/dc |
| Number of Digits | 7 (Annunciators Icon), 8 (Figure) |
| Digit Height | 2 (Annunciators Icon) mm, 8 (Figure) mm |
| Approvals | CE, CUL Recognized, RoHS, UL, WEEE |
| Mounting Type | Panel Mount |
| Cutout Size | 45.5 x 22.6 mm |
| Meter Type | Electronic |
| Depth | 38mm |
| Cutout Width | 45.5mm |
| Series | 6320 |
| Cutout Height | 22.6mm |
| Meter Accuracy | 1 |
| Function | Hour Meter |
| Maximum Measurement | 99999999 |
| Measurement Range | 0 → 99999999 |
| Minimum Operating Temperature | -20°C |
