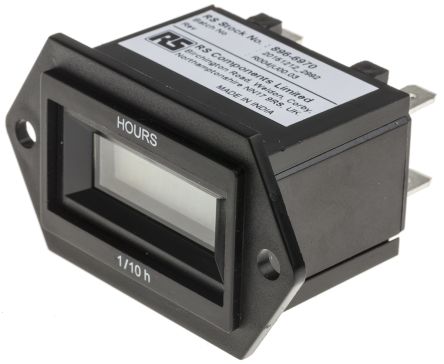

RS Pro Hour Counter, 6 digits, LCD, Crimp Terminal Connection, 10 80 V dc; 896-6970
by RS PRO
0₫
Mã kho: 8966970
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connection Type | Crimp Terminal |
| Display Type | LCD |
| Input Type | Voltage |
| Count Capacity | 99999.9 h |
| Reset Method | Remote |
| Supply Voltage | 10 → 80 V dc |
| Number of Digits | 6 |
| Count Direction | Up |
| Digit Height | 5 mm |
| Minimum Measurement | 0h |
| Weight | 31g |
| Cutout Width | 37mm |
| Depth | 36.5mm |
| Meter Type | Electronic |
| Cutout Size | 37 x 24.6 mm |
| Function | Hour Meter |
| Mounting Type | Flush Mount, Panel Mount |
| Minimum Operating Temperature | -10°C |
| Approvals | CE, RoHS, UL94V0 |
| Maximum Operating Temperature | +50°C |
| Measurement Range | 0 → 99999.9h |
| Cutout Height | 24.6mm |
| Shape | Rectangular |
| Meter Accuracy | ±0.02% |
| Maximum Measurement | 99999.9h |
