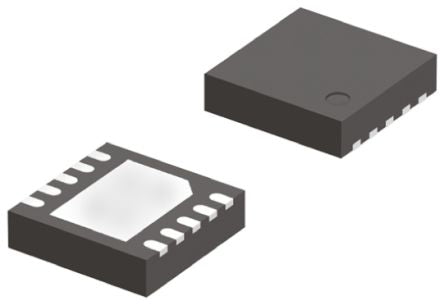

, Hot Swap Controller [LTC4413EDD#PBF]; 145-6294
0₫
Mã kho: 1456294
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Hot Swap Controller Type | Positive Voltage |
| Typical Operating Supply Voltage | 2.5 → 5.5 V |
| Number of Channels | 2 |
| External Sense Resistor | Yes |
| External FET | P-Channel |
| PGOOD Output Logic | Active High |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Pin Count | 10 |
| Fault Management | Auto-Retry |
| Dimensions | 3 x 3 x 0.7mm |
| Height | 0.7mm |
| Length | 3mm |
| Maximum Operating Temperature | +85 °C |
| Width | 3mm |
| Minimum Operating Temperature | -40 °C |
