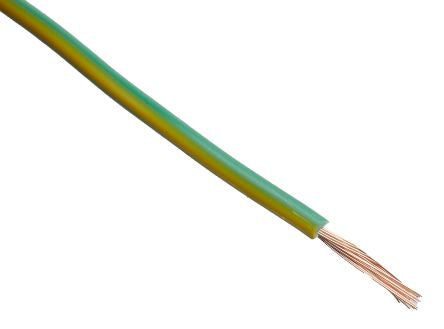

RS PRO Green/Yellow, 1 mm² Equipment Wire, 100m; 361-743
by RS PRO
0₫
Mã kho: 361743
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Cross Sectional Area | 1 mm² |
| Sheath Colour | Green/Yellow |
| American Wire Gauge | 17 AWG |
| Core Strands | 32/0.2 mm |
| Insulation Material | PVC |
| Outer Diameter | 2.8mm |
| Length | 100m |
| Voltage Rating | 750 V |
| Conductor Material | Annealed Copper |
| Wire Style | 2491X |
| Maximum Operating Temperature | +70°C |
| Shield Type | Unshielded |
| Insulation Wall Thickness | 0.6mm |
| Standards Met | BS 6004, BS EN 50525-2-31, RoHS Compliant |
| Harmonised Code | H05V-K |
