![Alpha Wire 6820 BL005 7495297](http://nguyenxuong.com/cdn/shop/products/R7495297-01_91755b78-1d9d-4ef2-9036-72b6df01d0ae_444x390.jpg?v=1594122547)

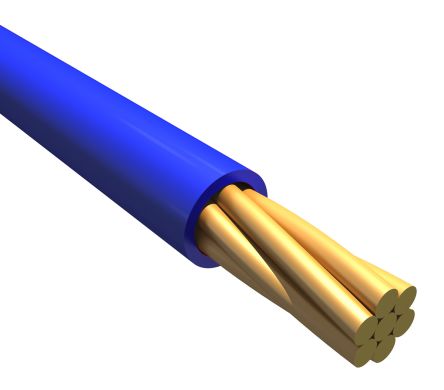

Alpha Wire Blue, 0.08 mm² Hook Up Wire EcoWire Plus Series , 30m [6820 BL005]; 749-5297
by Alpha Wire
0₫
Mã kho: 7495297
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Cross Sectional Area | 0.08 mm² |
Sheath Colour | Blue |
American Wire Gauge | 28 AWG |
Core Strands | 7/0.12 mm |
Insulation Material | MPPE |
Outer Diameter | 0.79mm |
Length | 30m |
Voltage Rating | 300 V |
Conductor Material | Copper |
Wire Style | ISO 6722 |
Maximum Operating Temperature | +110°C |
Shield Type | Unshielded |
Series | EcoWire Plus |
Insulation Wall Thickness | 0.2mm |
Standards Met | CE, ISO 6722, Reach Complaint, RoHS Complaint |
Minimum Operating Temperature | -40°C |
