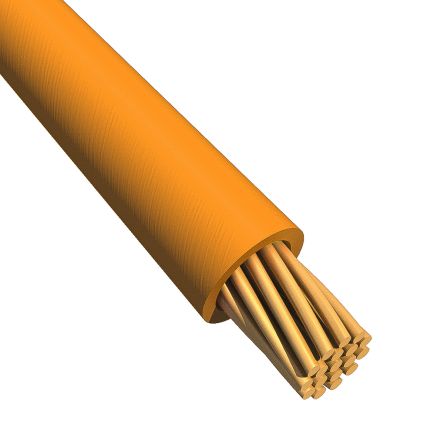

Alpha Wire Orange, 1.3 mm² Hook Up Wire EcoWire Series , 30m [6716 OR005]; 687-7588
by Alpha Wire
0₫
Mã kho: 6877588
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Cross Sectional Area | 1.3 mm² |
| Sheath Colour | Orange |
| American Wire Gauge | 16 AWG |
| Core Strands | 26/0.25 mm |
| Insulation Material | MPPE |
| Outer Diameter | 2.06mm |
| Length | 30m |
| Voltage Rating | 600 V |
| Conductor Material | Copper |
| Wire Style | UL11028 |
| Maximum Operating Temperature | +105°C |
| Shield Type | Unshielded |
| Series | EcoWire |
| Standards Met | CE, CSA, UL |
| Insulation Wall Thickness | 0.3mm |
| Minimum Operating Temperature | -40°C |
