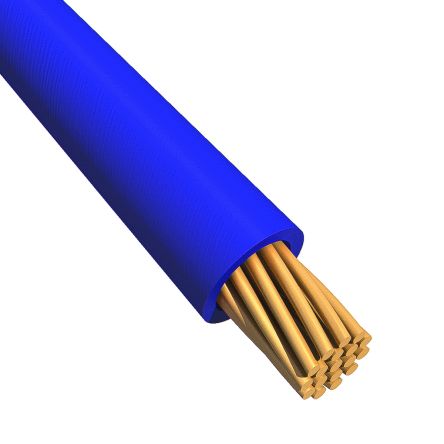

Alpha Wire Blue, 0.2 mm² Hook Up Wire EcoWire Series , 305m [6712 BL001]; 741-8026
by Alpha Wire
0₫
Mã kho: 7418026
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Cross Sectional Area | 0.2 mm² |
| Sheath Colour | Blue |
| American Wire Gauge | 24 AWG |
| Core Strands | 7/0.20 mm |
| Insulation Material | MPPE |
| Outer Diameter | 1.09mm |
| Length | 305m |
| Voltage Rating | 600 V |
| Conductor Material | Copper |
| Wire Style | UL11028 |
| Maximum Operating Temperature | +105°C |
| Shield Type | Unshielded |
| Series | EcoWire |
| Standards Met | CE, CSA, UL |
| Insulation Wall Thickness | 0.3mm |
| Minimum Operating Temperature | -40°C |
