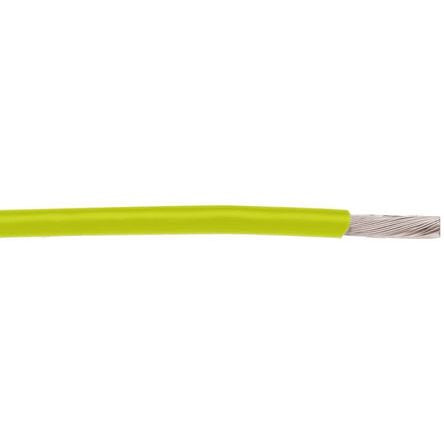

Alpha Wire Yellow, 0.2 mm² PTFE Equipment Wire Premium Series , 30m [5874 YL005]; 878-8152
by Alpha Wire
0₫
Mã kho: 8788152
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Cross Sectional Area | 0.2 mm² |
| Sheath Colour | Yellow |
| American Wire Gauge | 24 AWG |
| Core Strands | 19/0.13 mm |
| Insulation Material | PTFE |
| Outer Diameter | 1.37mm |
| Length | 30m |
| Voltage Rating | 1 kV |
| Conductor Material | Silver Plated Copper |
| Wire Style | UL1180 |
| Maximum Operating Temperature | +200°C |
| Series | Premium |
| Insulation Wall Thickness | 0.4mm |
| Standards Met | CA Prop 65, MIL-DTL-16878/5 Type EE, NEMA HP3, RoHS Compliant, UL, UL AWM 1180, UR Recognized |
| Minimum Operating Temperature | -60°C |
