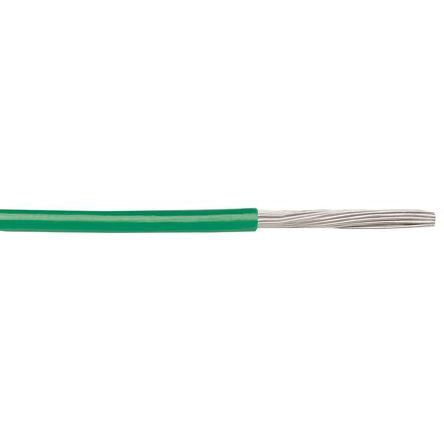

Alpha Wire Green, 0.2 mm² Hook Up Wire, 30m [1854 GR005]; 842-6047
by Alpha Wire
0₫
Mã kho: 8426047
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Cross Sectional Area | 0.2 mm² |
| Sheath Colour | Green |
| American Wire Gauge | 24 AWG |
| Core Strands | 7/0.20 mm |
| Insulation Material | PVC |
| Outer Diameter | 1.12mm |
| Length | 30m |
| Voltage Rating | 600 V |
| Conductor Material | Copper |
| Wire Style | MIL-W-76 |
| Maximum Operating Temperature | +105°C |
| Insulation Wall Thickness | 0.3mm |
| Standards Met | MIL-W-16878E/1, Military MIL-W-76B TYPE LW |
| Minimum Operating Temperature | -55°C |
