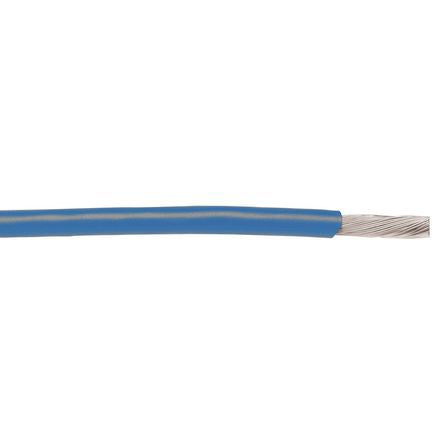

Alpha Wire Blue, 0.2 mm² Hook Up Wire Premium Series , 305m [1854/19 BL001]; 111-7929
by Alpha Wire
0₫
Mã kho: 1117929
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Cross Sectional Area | 0.2 mm² |
| Sheath Colour | Blue |
| American Wire Gauge | 24 AWG |
| Core Strands | 19/0.13 mm |
| Insulation Material | PVC |
| Outer Diameter | 1.14mm |
| Length | 305m |
| Voltage Rating | 600 V |
| Conductor Material | Copper |
| Wire Style | MIL-W-76 |
| Maximum Operating Temperature | +105°C |
| Fire Behaviour | Flame Retardant |
| Shield Type | Unshielded |
| Series | Premium |
| Insulation Wall Thickness | 0.3mm |
| Minimum Operating Temperature | -55°C |
| Standards Met | MIL-DTL-16878/1 Type B, MIL-W-76 Type LW |
