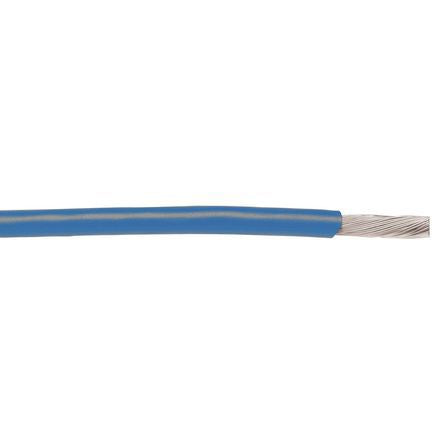

Alpha Wire Blue, 0.08 mm² Hook Up Wire, 305m [1852 BL001]; 121-4249
by Alpha Wire
0₫
Mã kho: 1214249
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Cross Sectional Area | 0.08 mm² |
| Sheath Colour | Blue |
| American Wire Gauge | 28 AWG |
| Core Strands | 7/0.12 mm |
| Insulation Material | PVC |
| Outer Diameter | 0.89mm |
| Length | 305m |
| Voltage Rating | 600 V |
| Conductor Material | Copper |
| Wire Style | MIL-W-76 |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -55°C |
| Insulation Wall Thickness | 0.3mm |
