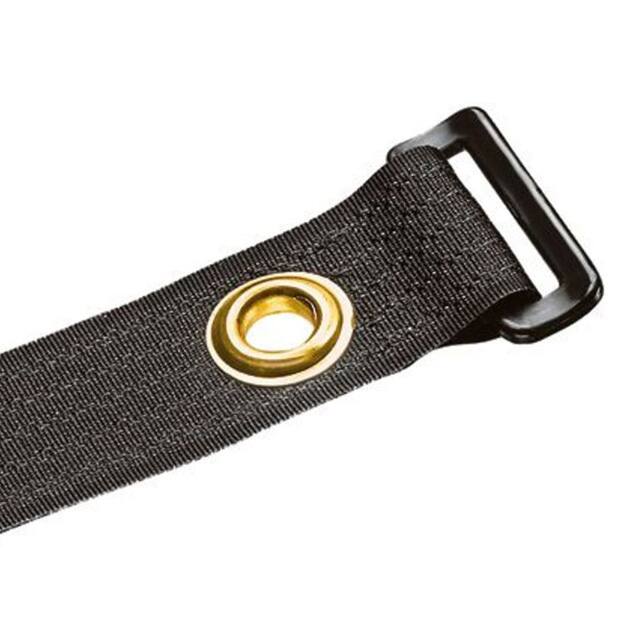

Panduit Ultra-Cinch™ hook & loop cinch cable tie, center mount grommet, UL94-V2 Rated, 7.5 (190.5mm) length, .85 (21.6mm) width, nylon hook & loop, brass grommet, nylon ring, black, standard package. [UGCTCV1.5S-X0]; PAP564

Name: Panduit Ultra-Cinch™ hook & loop cinch cable tie, center mount grommet, UL94-V2 Rated, 7.5 (190.5mm) length, .85 (21.6mm) width, nylon hook & loop, brass grommet, nylon ring, black, standard package. [UGCTCV1.5S-X0]; PAP564
Brand: Panduit
SKU: PAP564
Price: 80600.0 VND
Availability: InStock

by Panduit

80.600₫

(Giá chưa VAT).

Mã kho: PAP564

Mã nhà sản xuất: UGCTCV1.5S-X0

Đơn vị tính: RL

Quy cách đóng gói: 10

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Hook And Loop Cable Ties / Ultra Cinch Hook And Loop Cable Ties: Panduit UGCTCV1.5S-X0

MÔ TẢ SẢN PHẨM

The Ultra-Cinch™ Hook and Loop Cinch Cable Tie have hooks and loops on same side to secure a greater range of bundle diameters. The soft, premium material is safe to use on high performance cabling to protect against over-tensioning. The cinch cable tie is adjustable, releasable, and re-usable for a

_THÔNG SỐ KỸ THUẬT:

Product Type	Hook & Loop Cinch Cable Tie
Color	Black
Material	Nylon
Maximum Bundle Diameter (In.)	5
Maximum Bundle Diameter (mm)	127
Sub Brand	Ultra-Cinch™
Maximum Installation Temperature (°C)	70
Maximum Installation Temperature (°F)	158
Minimum Installation Temperature (°C)	70
Minimum Installation Temperature (°F)	-40
Maximum Operating Temperature (°C)	60
Maximum Operating Temperature (°F)	140
Minimum Operating Temperature (°C)	-18
Minimum Operating Temperature (°F)	0
Minimum Loop Tensile Strength (N)	222
Minimum Loop Tensile Strength (lb)	50
Screw Size	#12
Overall Length (In.)	7.5
Overall Length (mm)	190.5
Body Width (In.)	0.85
Body Width (mm)	21.6
Body Thickness (In.)	0.1
Body Thickness (mm)	2.5
Standards Met	RoHS Compliant
Application	Ideal for Applications Requiring Frequent Moves, Adds, or Changes
