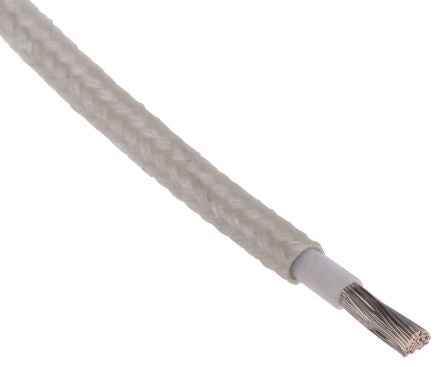

RS PRO Harsh Environment Wire 1.5 mm² CSA, Transparent 50m Reel; 819-9656
by RS PRO
0₫
Mã kho: 8199656
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Cross Sectional Area | 1.5 mm² |
| Sheath Colour | Transparent |
| American Wire Gauge | 15 AWG |
| Insulation Material | PFA |
| Resistant To | Abrasions, Heat, Industrial Fluids, Moisture |
| Core Strands | 30/0.25 |
| Maximum Operating Temperature | 250°C |
| Operating Temperature Range | Maximum of +250 °C |
| Length | 50m |
| Outer Diameter | 4.14mm |
| Voltage Rating | 1 kV, 600 V |
| Size of Strands | 0.25 |
| Conductor Material | Nickel Plated Copper |
| Number of Strands | 30 |
| Shield Type | Glass Braid, Glass Mica Tape |
| Cable Shape | Single Core |
