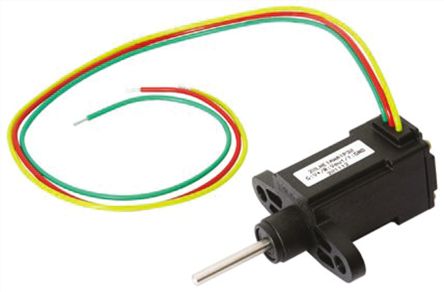

Vishay Hall Effect Sensor switching current 16 mA supply voltage 5 V dc [20LHE1AWA1P30E1]; 167-8913
by Vishay
0₫
Mã kho: 1678913
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Body Style | Block |
Mounting Style | Flange Mount |
Supply Voltage | 5 V dc |
Terminal Type | Wire Lead |
Maximum DC Voltage | 5V |
Detection Range | 0 → 10 mm |
Switching Current | 16 mA |
Length | 46mm |
Width | 47mm |
Depth | 23.3mm |
Dimensions | 46 x 47 x 23.3 mm |
Maximum Operating Temperature | +85°C |
Reverse Polarity Protection | Yes |
Housing Material | Thermoplastic |
IP Rating | IP51 |
Short Circuit Overload Protection | Yes |
Minimum Operating Temperature | -40°C |
