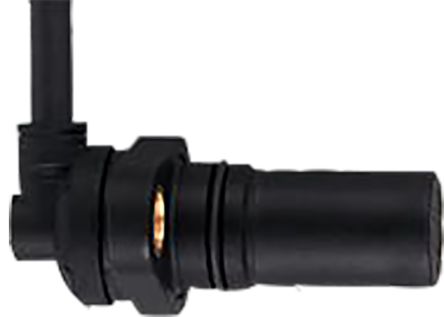

ifm Electronic NPN Hall Effect Sensor switching current 50 mA supply voltage 7 → 30 V dc [MX5015]; 123-8748
0₫
Mã kho: 1238748
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Type | NPN |
| Body Style | Barrel |
| Mounting Style | Cable Mount |
| Supply Voltage | 7 → 30 V dc |
| Terminal Type | Wire Lead |
| Maximum DC Voltage | 30V |
| Detection Range | 1.7 mm |
| Switching Current | 50 mA |
| Switching Frequency | 15 kHz |
| Width | 15 (Dia.)mm |
| Depth | 49.5mm |
| Dimensions | 15 (Dia.) x 49.5 mm |
| Maximum Operating Temperature | +140°C |
| Minimum Operating Temperature | -32°C |
| IP Rating | IP67, IP69K |
| Housing Material | Brass (Socket), FPM (O-Ring), Polyamide |
