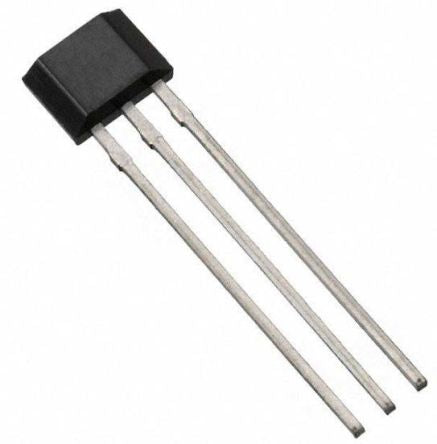

AH3364Q-P-B DiodesZetex,, Unipolar Hall Effect Sensor, 3-Pin SIP [AH3364Q-P-B]; 146-4682
by DiodesZetex
0₫
Mã kho: 1464682
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Magnetic Type | Unipolar |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Minimum Magnetic Sensor Release Point | 40 Gs |
| Maximum Magnetic Sensor Operating Point | 100 Gs |
| Minimum Operating Supply Voltage | 3 V |
| Maximum Operating Supply Voltage | 28 V |
| Length | 4.3mm |
| Width | 3.2mm |
| Height | 1.6mm |
| Dimensions | 4.3 x 3.2 x 1.6mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +150 °C |
| Package Type | SIP |
| Typical Magnetic Sensor Hysteresis | 20 Gs |
| Automotive Standard | AEC-Q100 |
