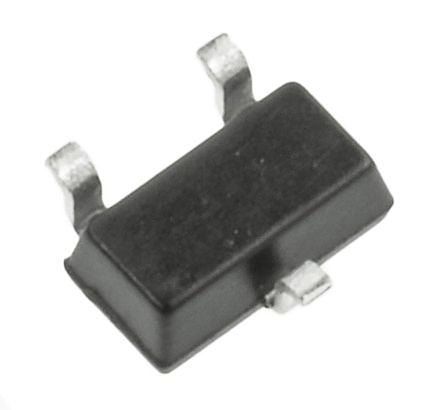

AH1751-WG-7-A DiodesZetex,, Bipolar Hall Effect Sensor, 3.5 → 20 V, 3-Pin SC-59 [AH1751-WG-7-A]; 922-8272
by DiodesZetex
0₫
Mã kho: 9228272
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Magnetic Type | Bipolar |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Minimum Magnetic Sensor Release Point | -70 Gs |
| Maximum Magnetic Sensor Operating Point | 70 Gs |
| Minimum Operating Supply Voltage | 3.5 V |
| Maximum Operating Supply Voltage | 20 V |
| Length | 3.1mm |
| Width | 1.7mm |
| Height | 1.3mm |
| Dimensions | 3.1 x 1.7 x 1.3mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Package Type | SC-59 |
| Typical Magnetic Sensor Hysteresis | 75 Gs |
