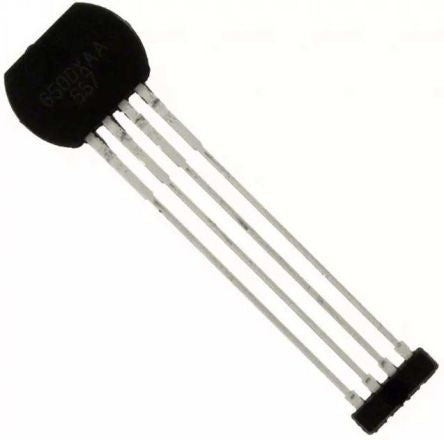

ATS468LSGTN-T Allegro Microsystems,, Transducer Hall Effect Sensor, 4-Pin SIP [ATS468LSGTN-T]; 146-4455
0₫
Mã kho: 1464455
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Magnetic Type | Transducer |
| Mounting Type | Through Hole |
| Pin Count | 4 |
| Minimum Magnetic Sensor Release Point | 3 Gs |
| Maximum Magnetic Sensor Operating Point | 10 Gs |
| Minimum Operating Supply Voltage | 4 V |
| Maximum Operating Supply Voltage | 26.5 V |
| Length | 29.45mm |
| Width | 5.5mm |
| Height | 5.5mm |
| Dimensions | 29.45 x 5.5 x 5.5mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +150 °C |
| Package Type | SIP |
