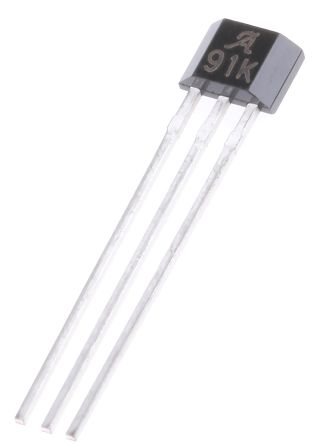

A3291KUA-T Allegro Microsystems,, Bipolar Hall Effect Sensor, 3-Pin SIP [A3291KUA-T]; 170-9093
0₫
Mã kho: 1709093
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Magnetic Type | Bipolar |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Minimum Magnetic Sensor Release Point | -100 Gs |
| Maximum Magnetic Sensor Operating Point | 100 Gs |
| Minimum Operating Supply Voltage | 4.2 V |
| Maximum Operating Supply Voltage | 24 V |
| Length | 4.09mm |
| Width | 1.52mm |
| Height | 3.02mm |
| Dimensions | 4.09 x 1.52 x 3.02mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Package Type | SIP |
| Typical Magnetic Sensor Hysteresis | 200 (Maximum) Gs |
