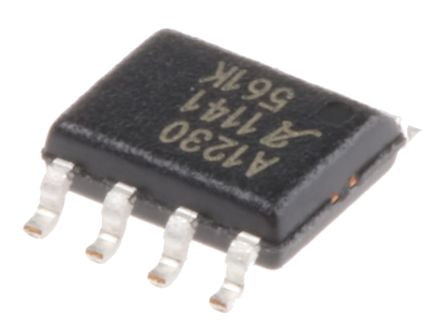

A1230LLTR-T Allegro Microsystems,, Bipolar Hall Effect Sensor, 8-Pin SOIC [A1230LLTR-T]; 753-1996
0₫
Mã kho: 7531996
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Magnetic Type | Bipolar |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Minimum Magnetic Sensor Release Point | -30 Gs |
| Maximum Magnetic Sensor Operating Point | 30 Gs |
| Minimum Operating Supply Voltage | 3.3 V |
| Maximum Operating Supply Voltage | 18 V |
| Length | 4.9mm |
| Width | 3.9mm |
| Height | 1.47mm |
| Dimensions | 4.9 x 3.9 x 1.47mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +150 °C |
| Package Type | SOIC |
| Typical Magnetic Sensor Hysteresis | 14 Gs |
