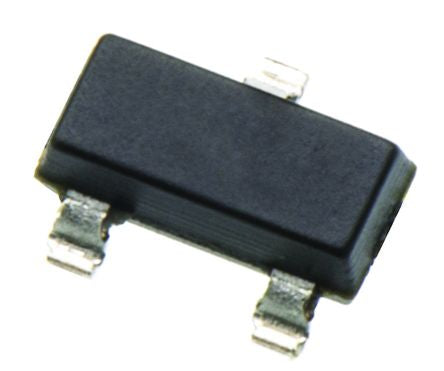

A1102ELHLT-T Allegro Microsystems,, Unipolar Hall Effect Sensor Switch, 3-Pin SOT-23 [A1102ELHLT-T]; 177-5544
0₫
Mã kho: 1775544
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Magnetic Type | Unipolar |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Minimum Magnetic Sensor Release Point | 75 Gs |
| Maximum Magnetic Sensor Operating Point | 230 Gs |
| Minimum Operating Supply Voltage | 3.8 V |
| Maximum Operating Supply Voltage | 24 V |
| Length | 2.98mm |
| Width | 1.91mm |
| Height | 0.95mm |
| Dimensions | 2.98 x 1.91 x 0.95mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Package Type | SOT-23 |
| Typical Magnetic Sensor Hysteresis | 55 Gs |
