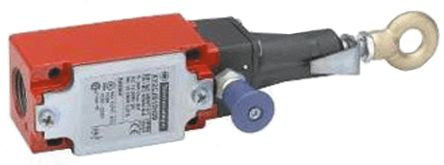

XY2CJ Cable Switch with E-Stop, Dual Direction, 20m, 2NC [XY2CJS17]; 837-1114
0₫
Mã kho: 8371114
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | Preventa |
| Series | XY2CJ |
| Reset Button | Yes |
| Pole Configuration | 2P |
| Normal State Configuration | 2NC |
| Mounting Orientation | Left Side, Right Side |
| Maximum Rope Span | 20m |
| Maximum Current | 3 A @ 240 V ac, 270 mA @ 250 V dc |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Housing Material | Zamak |
| Number of Cable Entries | 1 |
| Size of Cable Entries | PG13.5 |
| Width | 64.2mm |
| E-Stop Button | Yes |
| Depth | 40mm |
| Dimensions | 200.9 x 64.2 x 40 mm |
| Minimum Operating Temperature | -25°C |
| IP Rating | IP66, IP67 |
| Length | 200.9mm |
| Maximum Operating Temperature | +70°C |
