![Telemecanique Sensors XY2CH13290H29 1300872](http://nguyenxuong.com/cdn/shop/products/R1300871-01_7b3ba9f4-4af9-4b6e-8900-bf2b555a691d_444x210.jpg?v=1594138935)

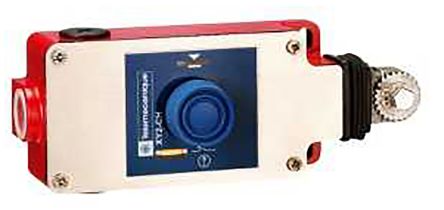

XY2CH Grab Wire Switch with E-Stop, 30m, 2NC, NO [XY2CH13290H29]; 130-0872
0₫
Mã kho: 1300872
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Range | Preventa XY2 |
Series | XY2CH |
Reset Button | Yes |
Pole Configuration | DPST |
Indicator Type | Rope Tension |
Normal State Configuration | NO, 2NC |
Maximum Rope Span | 30m |
Maximum Current | 1.5 A ac, 100 mA dc |
Maximum AC Voltage | 240V |
Maximum DC Voltage | 250V |
Housing Material | Stainless Steel (Cover), Zamak (Body) |
Number of Cable Entries | 3 |
Size of Cable Entries | ISO M20 |
Minimum Operating Temperature | -25°C |
Length | 68mm |
Depth | 201mm |
Dimensions | 68 x 95 x 201 mm |
Standards Met | CCC, CSA C 22-2, EAC, EN/IEC 60947-5-5, UL (NISD), UL 508 |
Maximum Operating Temperature | +70°C |
Width | 95mm |
E-Stop Button | Yes |
IP Rating | IP65 |
