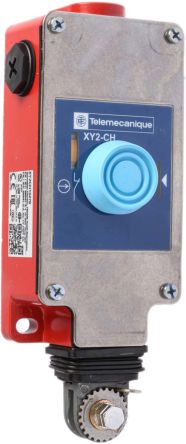

XY2-CH Cable Switch, Straight, 15m, 2NC [XY2CH13270]; 609-1939
0₫
Mã kho: 6091939
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | Preventa |
| Series | XY2-CH |
| Reset Button | Yes |
| Normal State Configuration | 2NC |
| Mounting Orientation | Straight |
| Maximum Rope Span | 15m |
| Maximum Current | 3 A ac, 270 mA dc |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Number of Cable Entries | 1 |
| Conduit Entry | PG13.5 |
| Size of Cable Entries | PG13.5 |
| Minimum Operating Temperature | -25°C |
| Dimensions | 68 x 201 x 95 mm |
| IP Rating | IP65 |
| Depth | 95mm |
| Length | 68mm |
| Maximum Operating Temperature | +70°C |
| E-Stop Button | No |
| Width | 201mm |
