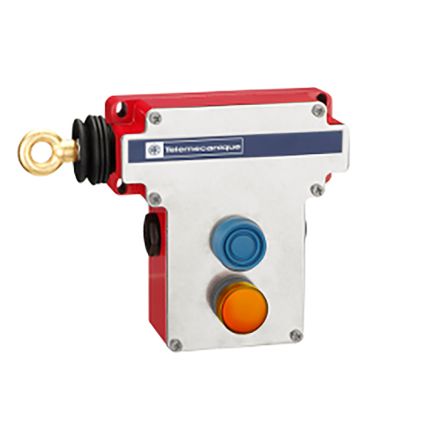

XY2 Cable Switch With E-Stop, Left Side, 70m, 2NC/2NO [XY2CE2A297]; 179-9960
0₫
Mã kho: 1799960
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Range | Preventa XY2 |
Series | XY2 |
Reset Button | Yes |
Pole Configuration | 2P |
Normal State Configuration | 2NC/2NO |
Mounting Orientation | Left Side |
Maximum Rope Span | 70m |
Maximum Current | 0.125 |
Maximum AC Voltage | 240V |
Maximum DC Voltage | 250V |
Housing Material | Zamak |
Number of Cable Entries | 1 |
Conduit Entry | PG 13.5 |
Size of Cable Entries | ISO M20, PG 13.5 |
Minimum Operating Temperature | -25°C |
Depth | 142mm |
Dimensions | 229 x 105 x 142 mm |
Maximum Operating Temperature | +70°C |
E-Stop Button | Yes |
IP Rating | IP66 |
Length | 229mm |
Width | 105mm |
