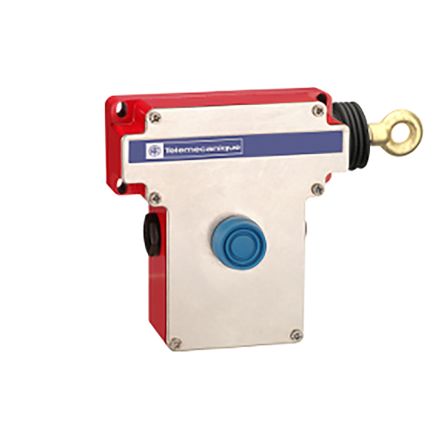

XY2 Cable Switch With E-Stop, Right Side, 70m, NC/NO [XY2CE1A250]; 179-9958
0₫
Mã kho: 1799958
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | Preventa XY2 |
| Series | XY2 |
| Reset Button | Yes |
| Pole Configuration | 2P |
| Normal State Configuration | NC/NO |
| Mounting Orientation | Right Side |
| Maximum Rope Span | 70m |
| Maximum Current | 0.125 |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Housing Material | Zamak |
| Number of Cable Entries | 1 |
| Conduit Entry | PG 13.5 |
| Size of Cable Entries | ISO M20, PG 13.5 |
| Length | 229mm |
| Width | 105mm |
| IP Rating | IP66 |
| Minimum Operating Temperature | -25°C |
| Dimensions | 229 x 105 x 142 mm |
| Maximum Operating Temperature | +70°C |
| E-Stop Button | Yes |
| Depth | 142mm |
