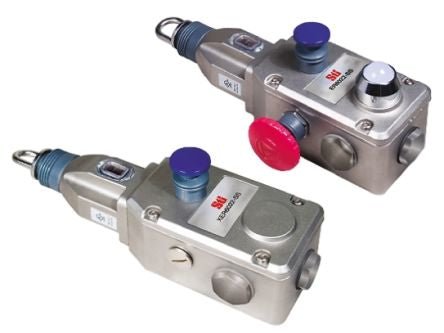

ER Cable Switch with E-Stop, Straight, 100m, 2NO/2NC [ER6022-022MELSS]; 757-9121
by Omron
0₫
Mã kho: 7579121
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Series | ER |
Reset Button | Yes |
Normal State Configuration | 2NO/2NC |
Mounting Orientation | Straight |
Maximum Rope Span | 100m |
Maximum Current | 0.125 |
Maximum AC Voltage | 240V |
Maximum DC Voltage | 24V |
Housing Material | Die Cast Aluminium |
Number of Cable Entries | 3 |
Conduit Entry | M20 x 3 |
Size of Cable Entries | M20 |
Width | 96mm |
Depth | 86mm |
Minimum Operating Temperature | -25°C |
Dimensions | 239 x 96 x 86 mm |
Length | 239mm |
IP Rating | IP67 |
Maximum Operating Temperature | +80°C |
E-Stop Button | Yes |
