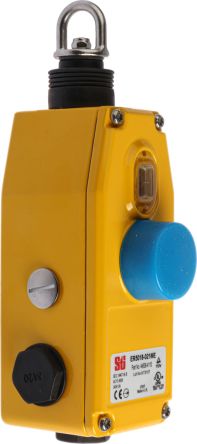

ER Cable Switch with E-Stop, Straight, 40m, NO/2NC [ER5018-021ME]; 757-9106
by Omron
0₫
Mã kho: 7579106
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | ER |
| Reset Button | Yes |
| Normal State Configuration | NO/2NC |
| Mounting Orientation | Straight |
| Maximum Rope Span | 40m |
| Maximum Current | 0.125 |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 24V |
| Housing Material | Die Cast Aluminium |
| Number of Cable Entries | 3 |
| Conduit Entry | M20 x 3 |
| Size of Cable Entries | M20 |
| Width | 90mm |
| IP Rating | IP67 |
| E-Stop Button | Yes |
| Maximum Operating Temperature | +80°C |
| Dimensions | 205 x 90 x 74 mm |
| Depth | 74mm |
| Minimum Operating Temperature | -25°C |
| Length | 205mm |
