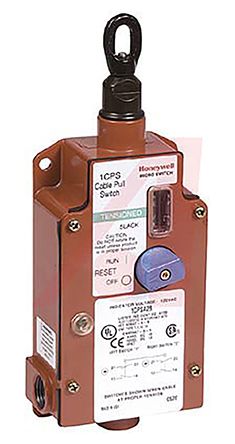

1CPS Cable Switch, Straight, 76m, 2NO/2NC [1CPSC2A]; 820-3339
by Honeywell
0₫
Mã kho: 8203339
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | 1CPS |
| Reset Button | Yes |
| Normal State Configuration | 2NO/2NC |
| Mounting Orientation | Straight |
| Maximum Rope Span | 76m |
| Maximum Current | 0.416666666666667 |
| Maximum AC Voltage | 600V |
| Maximum DC Voltage | 250V |
| Housing Material | Die Cast Zinc |
| Number of Cable Entries | 1 |
| Conduit Entry | 20 mm |
| Size of Cable Entries | 20 mm |
| IP Rating | IP67 |
| Length | 172.72mm |
| Depth | 62.2mm |
| Dimensions | 172.72 x 99.06 x 62.2 mm |
| Minimum Operating Temperature | -25°C |
| Width | 99.06mm |
| Maximum Operating Temperature | +80°C |
| E-Stop Button | No |
