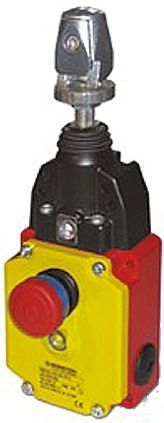

SRM Cable Switch, Straight, 37.5m, NO/NC [SRM-U1Z/U1Z-QF-175 E]; 564-765
by Bernstein AG
0₫
Mã kho: 564765
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | SRM |
| Reset Button | No |
| Pole Configuration | DP |
| Normal State Configuration | NO/NC |
| Mounting Orientation | Straight |
| Maximum Rope Span | 37.5m |
| Maximum Current | 4 A ac, 550 mA dc |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Housing Material | Die Cast Aluminium |
| Number of Cable Entries | 3 |
| Size of Cable Entries | M20 x 1.5 |
| Minimum Operating Temperature | -30°C |
| Dimensions | 282 x 90 x 88 mm |
| Maximum Operating Temperature | +80°C |
| E-Stop Button | No |
| Depth | 88mm |
| IP Rating | IP67 |
| Length | 282mm |
| Width | 90mm |
