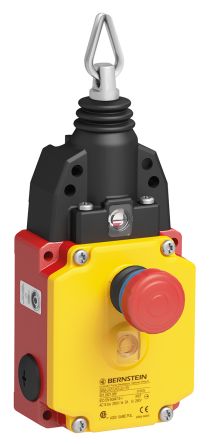

SRM Cable Switch, 37.5m, 2NC/2NO [6012921090]; 136-3170
by Bernstein AG
0₫
Mã kho: 1363170
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | SRM |
| Reset Button | Yes |
| Pole Configuration | SP |
| Normal State Configuration | 2NC/2NO |
| Maximum Rope Span | 37.5m |
| Maximum Current | 50 mA |
| Maximum DC Voltage | 30V |
| Housing Material | Aluminium |
| Number of Cable Entries | 3 |
| Size of Cable Entries | M20 x 1.5 |
| IP Rating | IP67 |
| Width | 88mm |
| Length | 90mm |
| Maximum Operating Temperature | +80°C |
| Dimensions | 90 x 88 x 197 mm |
| Depth | 197mm |
| Minimum Operating Temperature | -30°C |
