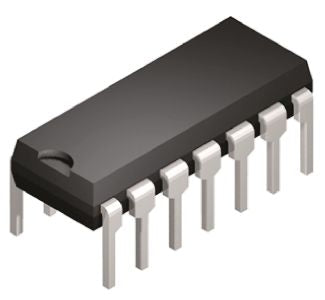

Texas Instruments TLV5620CN, 4-Channel 8 bit Serial DAC, 48ksps, 14-Pin PDIP [TLV5620CN]; 162-7122
0₫
Mã kho: 1627122
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | Serial (SPI) |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Single |
| Conversion Rate | 48ksps |
| Typical Single Supply Voltage | 3.3 V |
| Voltage Reference | External |
| Architecture | Resistor String |
| Pin Count | 14 |
| Maximum Settling Time | 10µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±60mV |
| Maximum Operating Temperature | +70 °C |
| Integral Nonlinearity Error | ±1LSB |
| Length | 19.3mm |
| Minimum Operating Temperature | 0 °C |
| Width | 6.35mm |
| Height | 4.57mm |
| Dimensions | 19.3 x 6.35 x 4.57mm |
